Mold making Beachstones 2

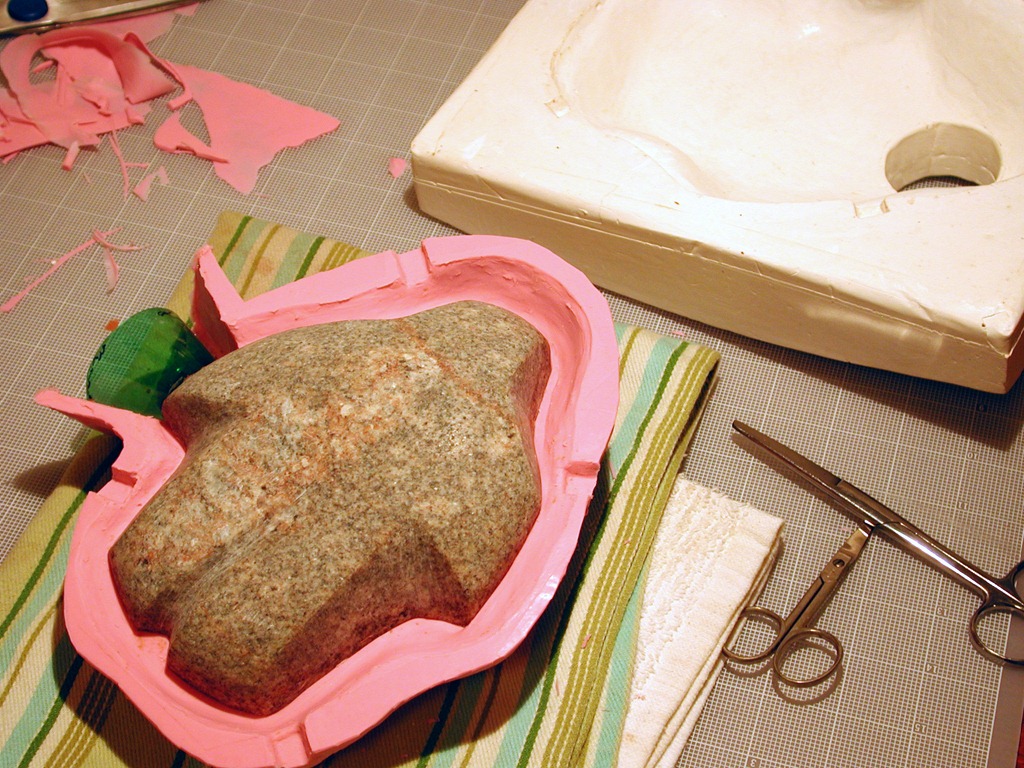

47_beachstonemoldThe silicone trimmed-off.

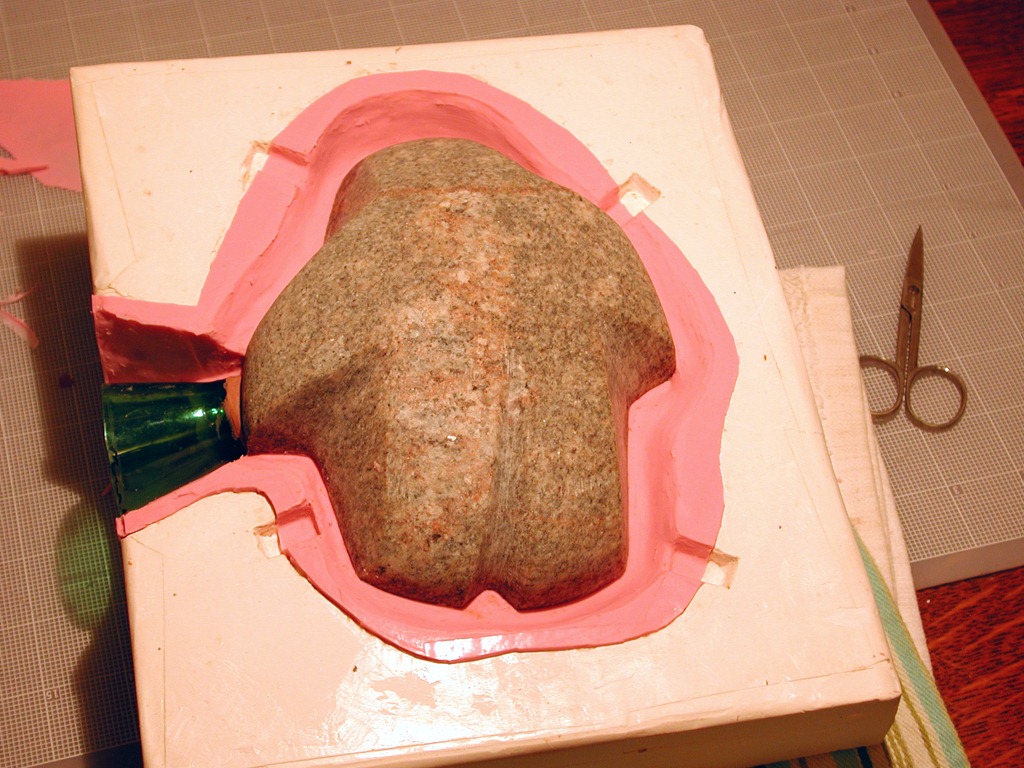

The first half mold finished. Plaster mother mold and silicone mold together.

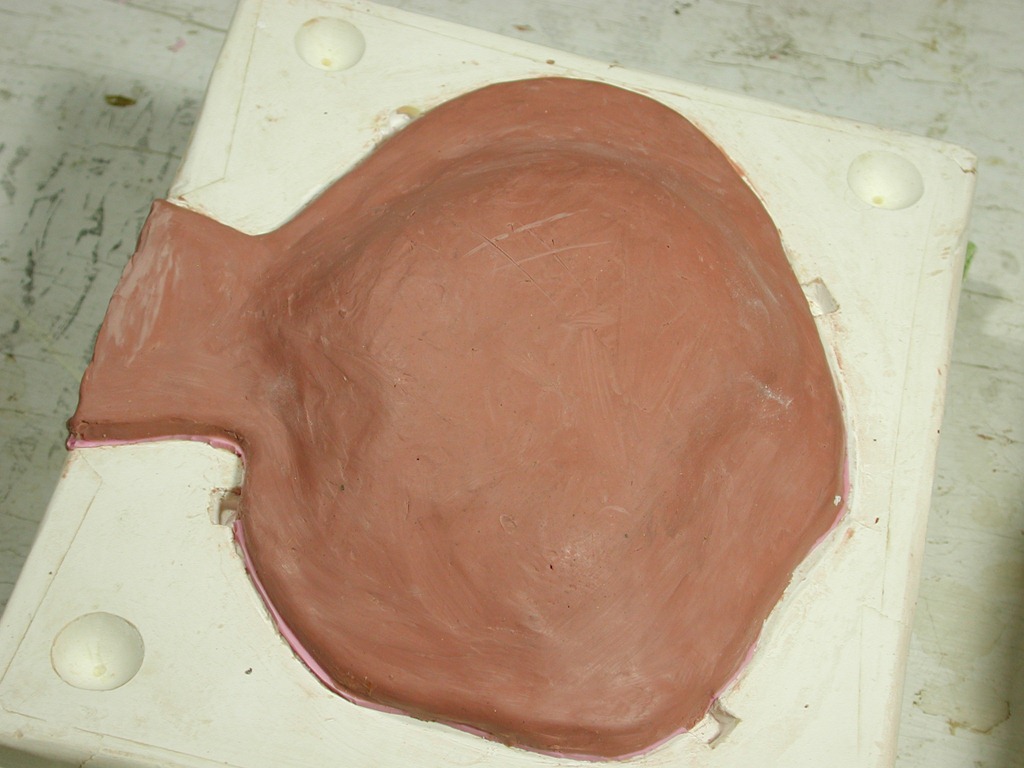

Next half begins. Again, apply a clay blanket 1/4 to 3/8 inch thick to exposed object and mold. Remember, the clay will eventually become the shape of the poured silicone later. I carved some half-round indents onto the plaster in each corner to create an interlock with the 2nd half.

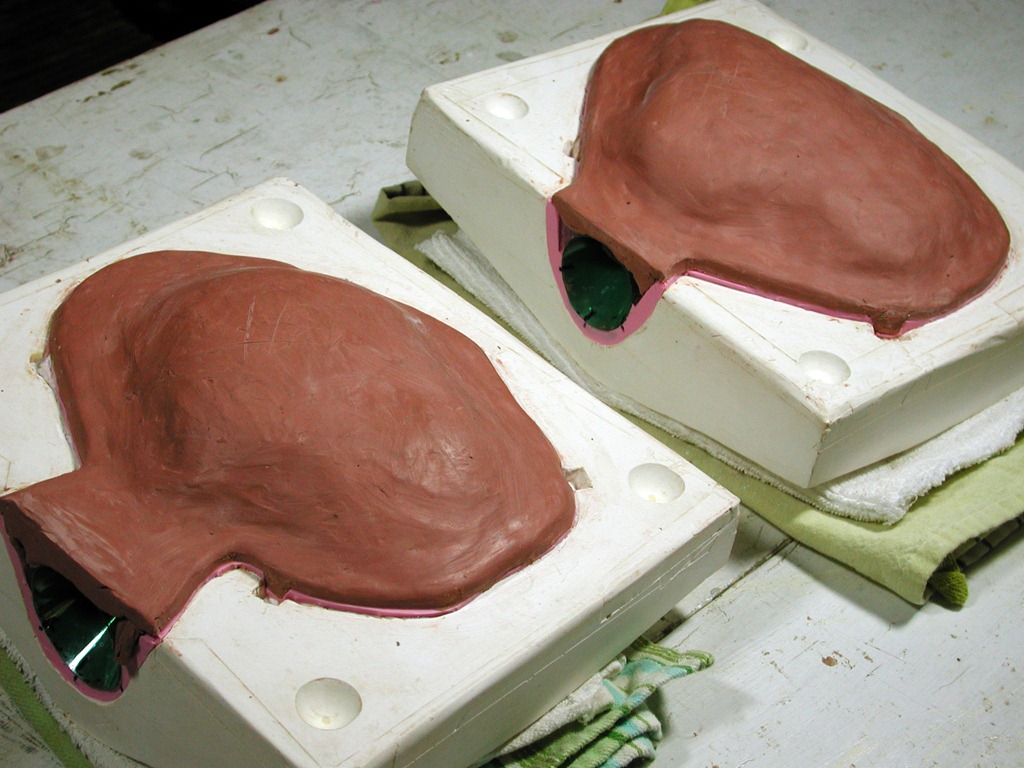

51_beachstonemoldThe two molds ready for the 2nd half plaster mother mold to happen.

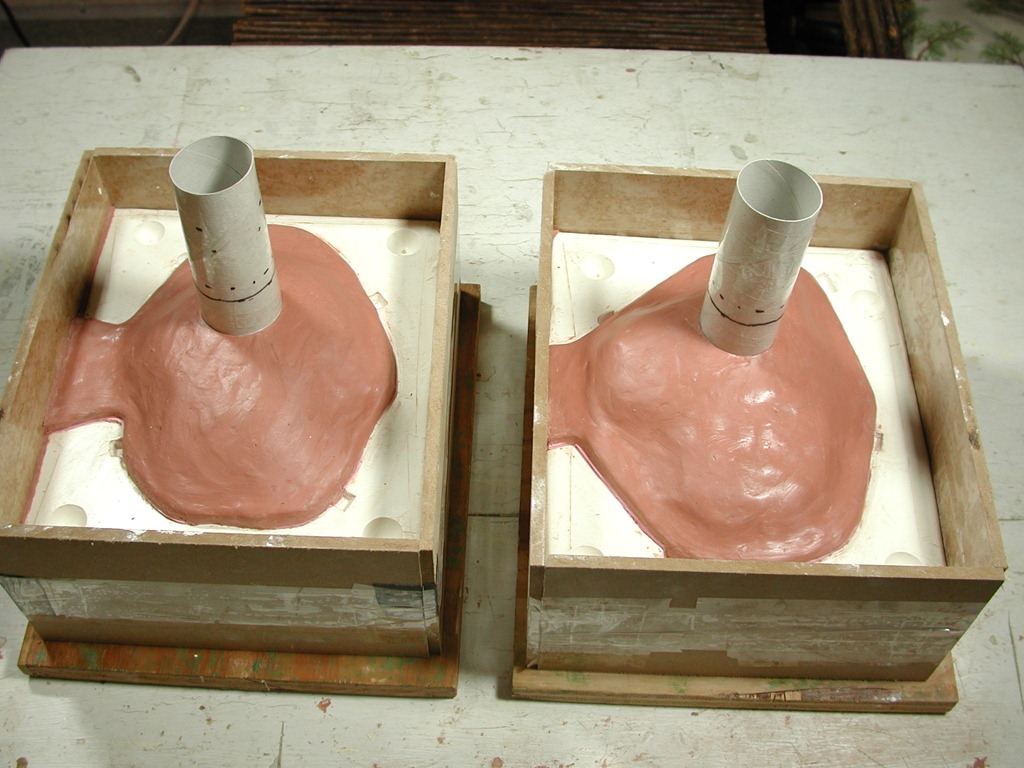

52_beachstonemoldReady for plaster to be poured; each mold boxed, with a pour sprue for the silicone. Seal edges of mold along the sides of the box to prevent leakage. Apply spray-on mold release liberally everywhere.

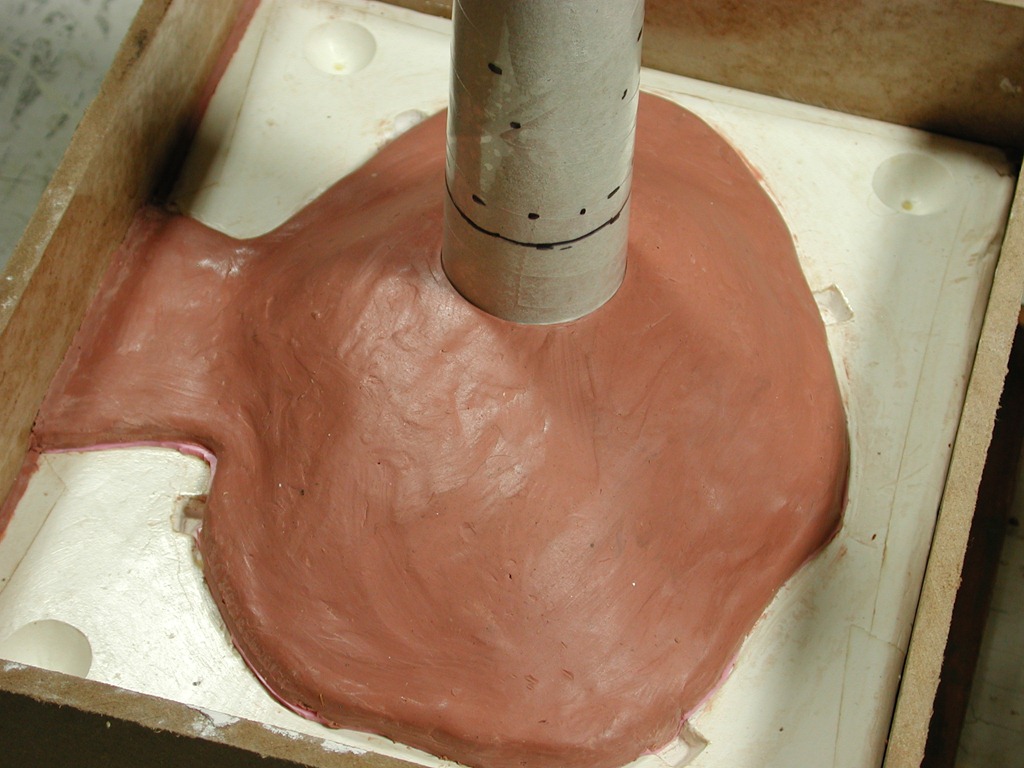

53_beachstonemoldMarks on the tube show how deep to pour the plaster. One inch is enough. Light weight is better.

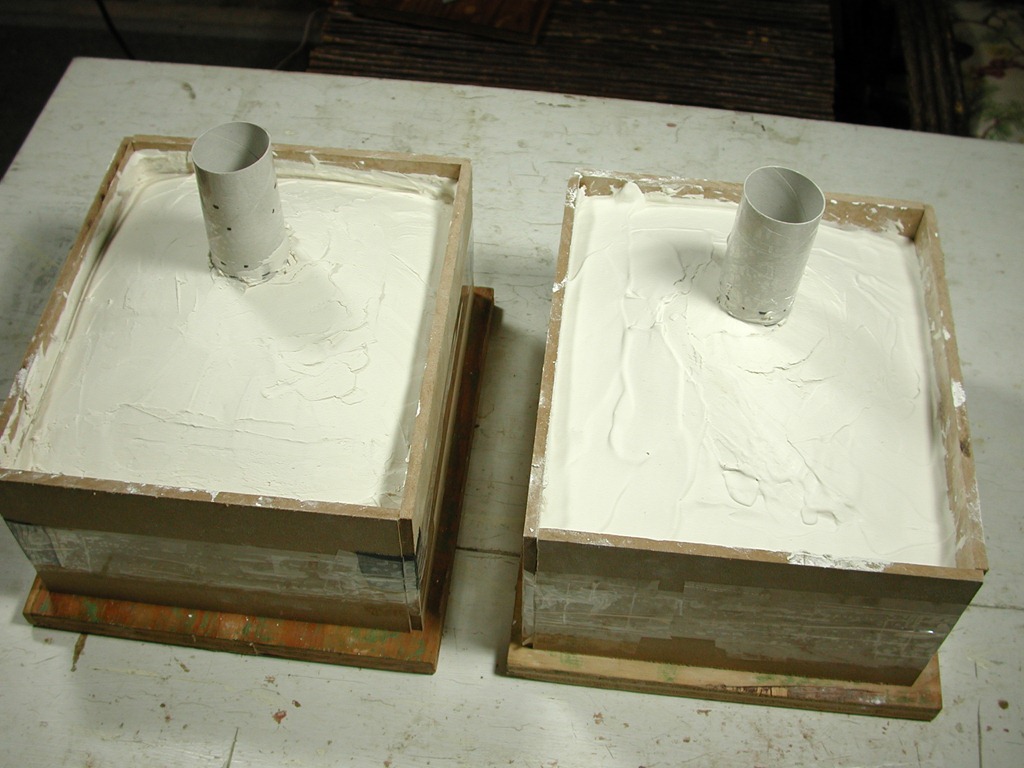

55_beachstonemoldPoured OK. Allow to dry at least 48 hours. Plaster continues to harden for days.

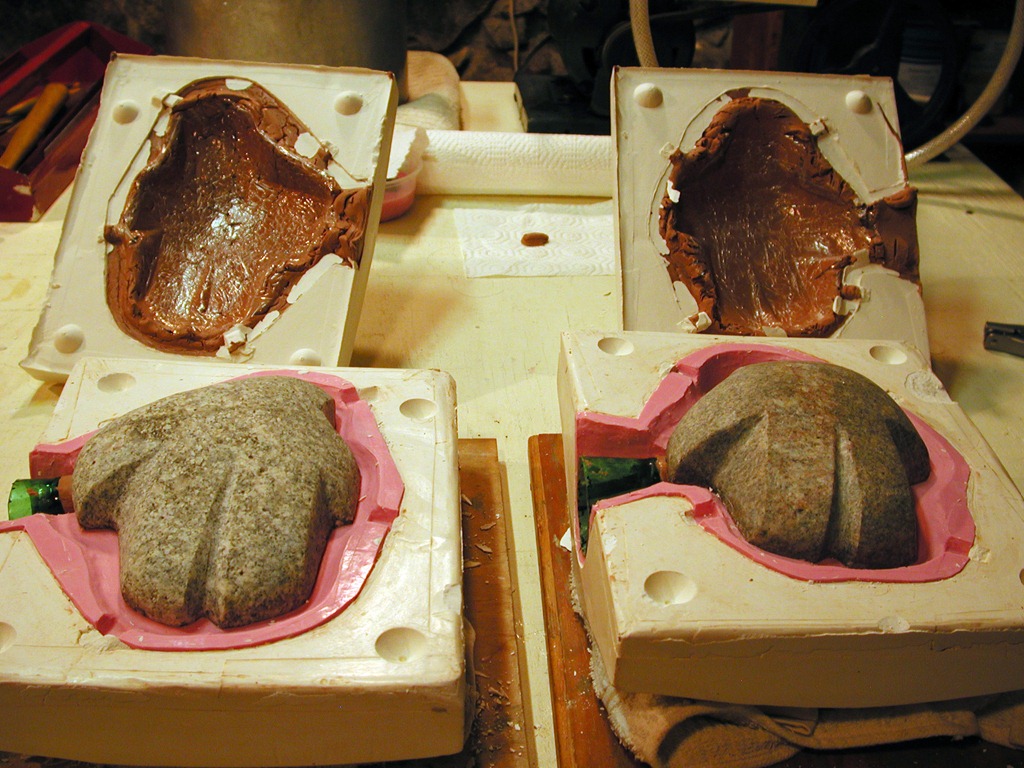

56_beachstonemoldRemove the box and tube, open the mold carefully using fine wooden wedges. Don’t force it.




58_beachstonemoldRemove the clay blanket, you’re done with it. Wax the whole surface of the plaster with Briwax, and spray release on it and the first side, and model, &c.

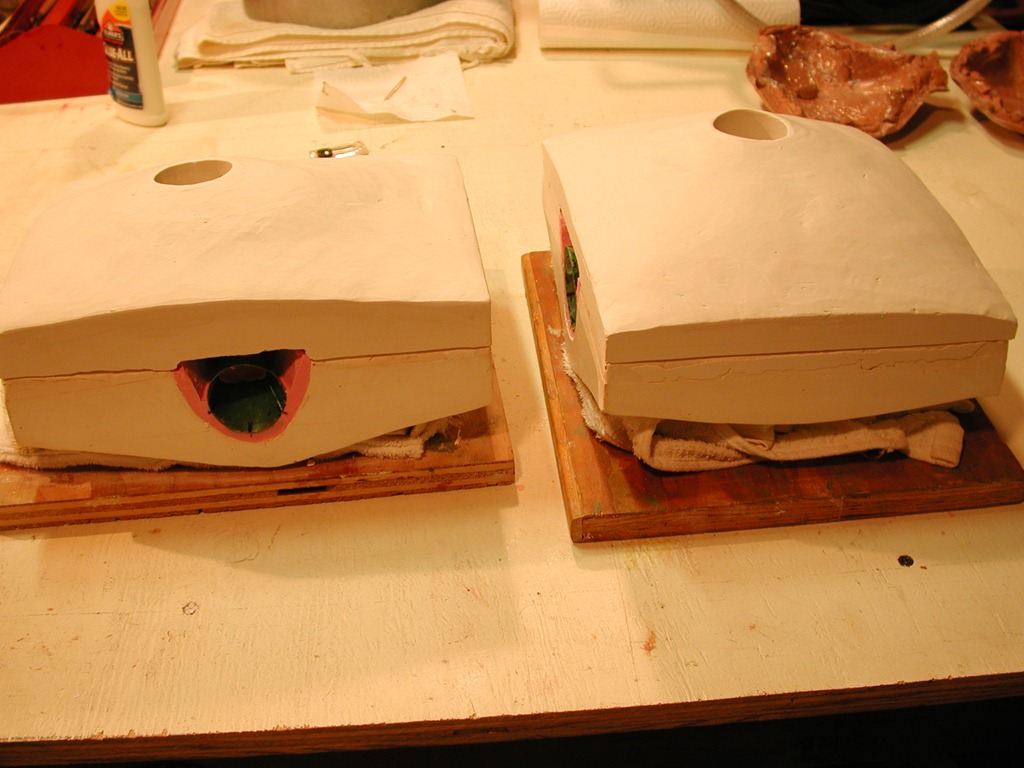

59_beachstonemoldReassemble the molds, ready for casting the silicone. Seal the funnel sprue area with clay.

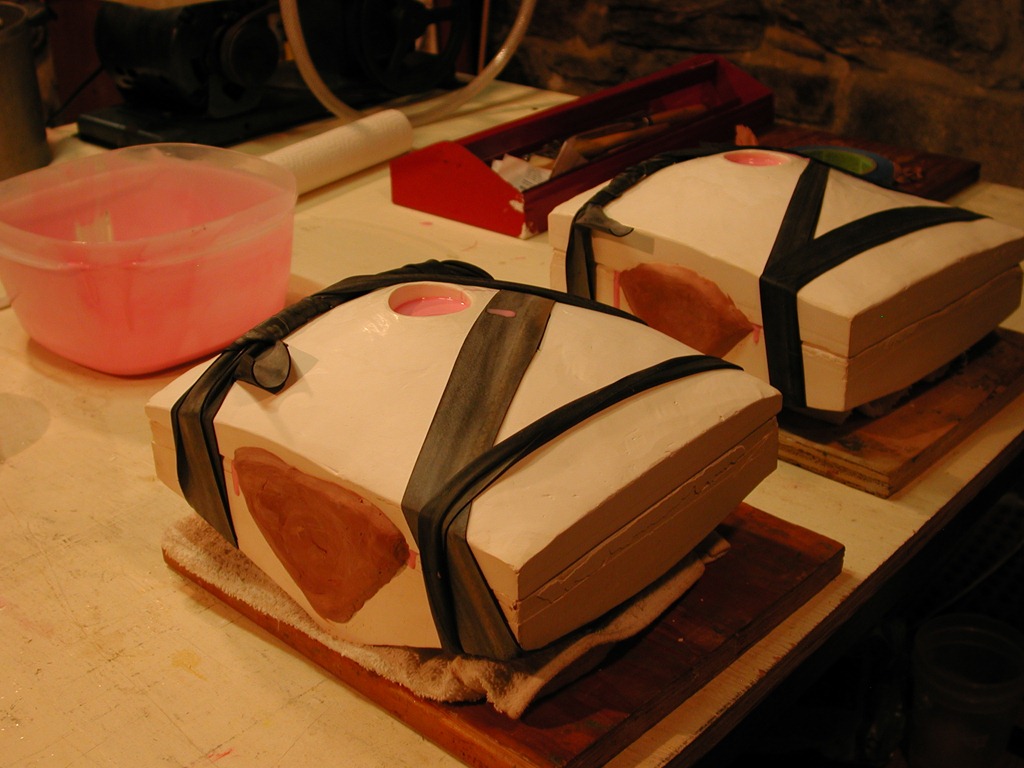

61_beachstonemoldThe silicone poured. See the clay seals around the sprue required to keep the silicone in the mold.

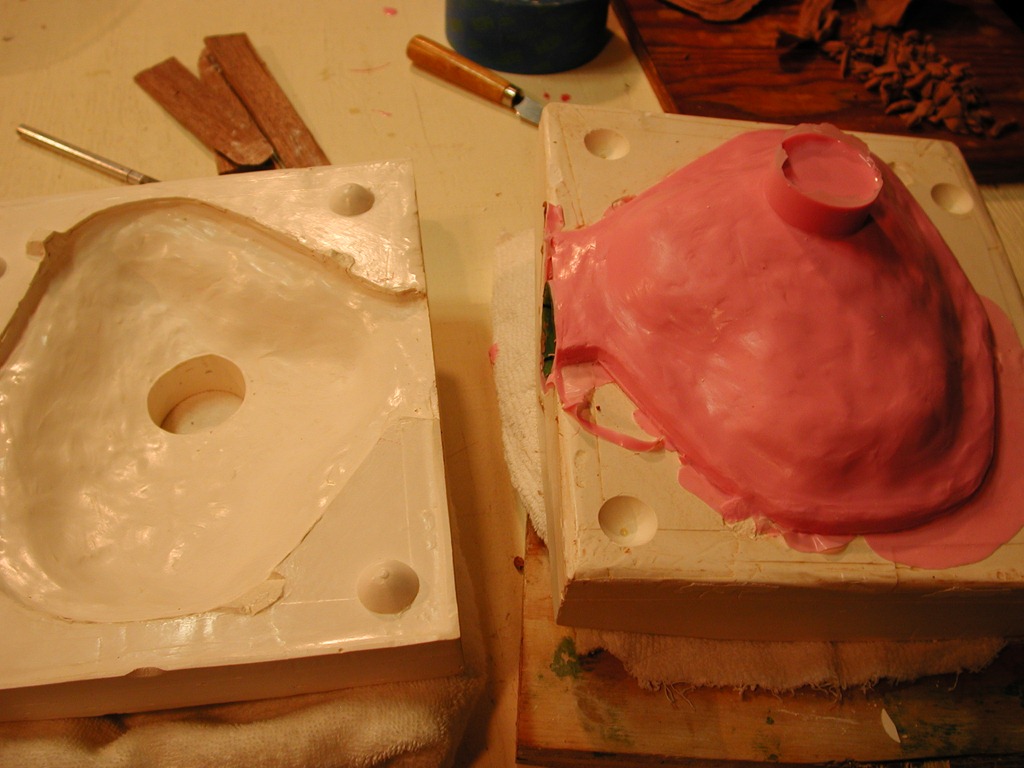

64_beachstonemoldCure silicone 24-48 hours, and open the plaster mold. Trim off any over bleed.

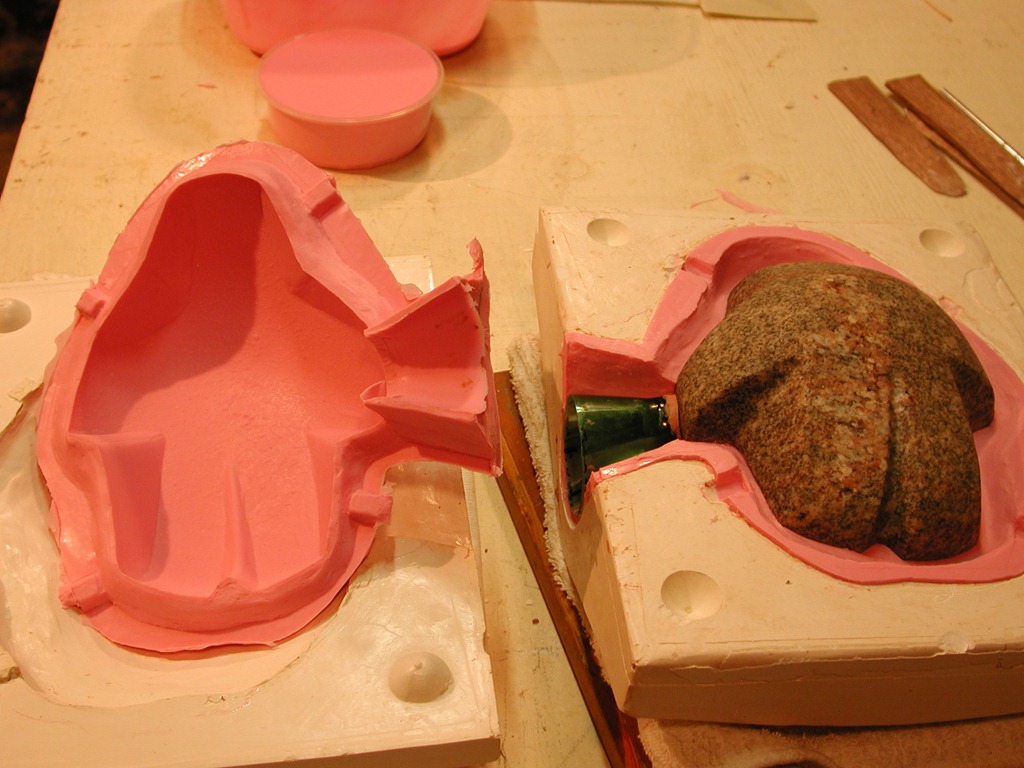

67_beachstonemoldOpen the silicone mold.

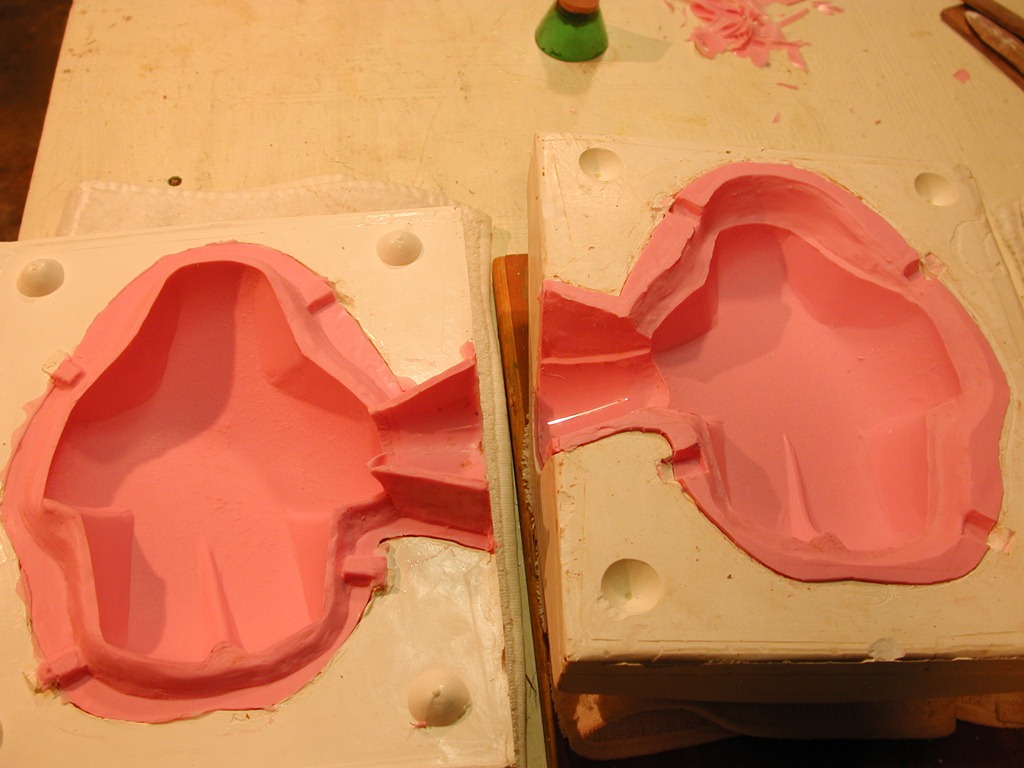

69_beachstonemoldRemove the model. Nice. This is what it’s all been for.

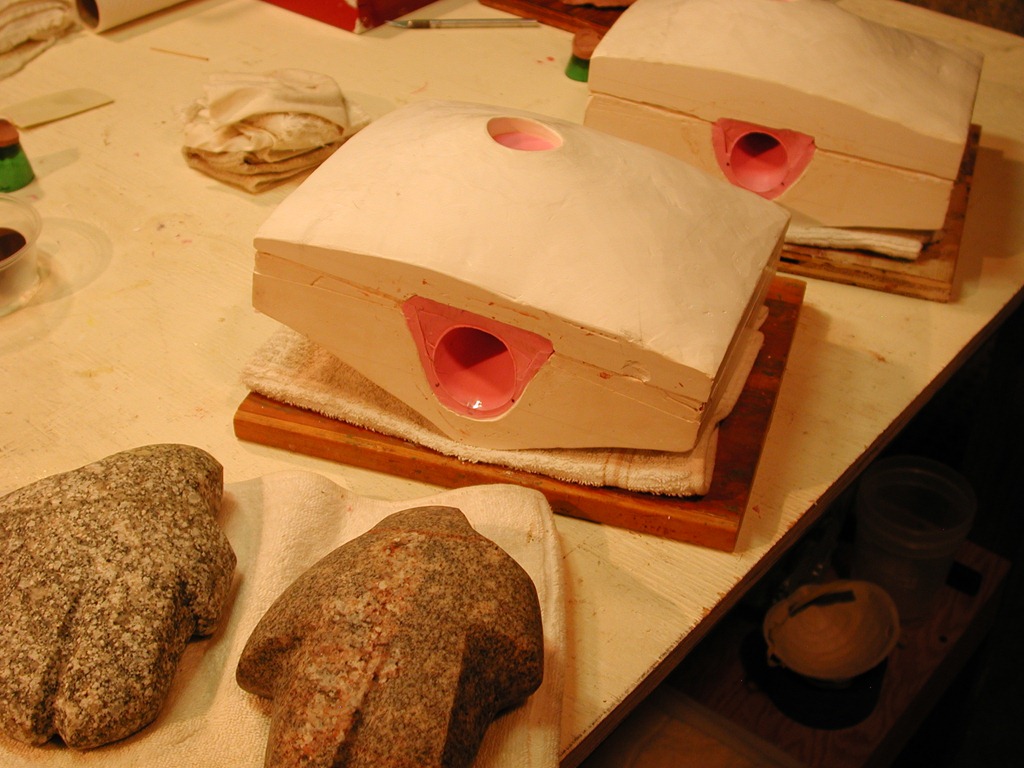

72_beachstonemoldReassembled molds, ready to be poured with wax, plastic, or cement.




This whole 2nd half mold was another 6 sessions of work, about 4-6 hours each, or about three weeks of weekends and nights after work. My October, Happy. These are two good molds and now I hope to get some good product out of them.
