Cradle

To work on a mold comfortably and productively, it is helpful to situate it in a position where the parting line, and therefore the halves of the mold, are laying horizontal. This way is easier to get your hands on it, and to see by light from above, what you want to work on. Also, when you pour plaster or silicone rubber, it is easier to make it flow and have a system of vents in the horizontal, and to cover the whole piece evenly. Therefore, it is my practice to build a cradle to hold the piece in the position I favor, which keeps the parting line generally facing upwards, and which is usually the case with figurative sculpture, having a parting line most often from the back and front. The construction of such a cradle can be complex and time consuming itself, but I feel it pays off well in results of the finished mold, and in the ease and comfort of working on it. You can see examples of figurative sculpture molds made in the vertical orientation, but the difficulty and discomfort of it out weighs the effort to make the cradle in my opinion. A craftsman does his best work in a comfortable, well lit and equipped situation. Since I recently received a gift of excellent fluorescent work lighting installed in the studio by my loving wife "A., I am appreciating this fact very much.

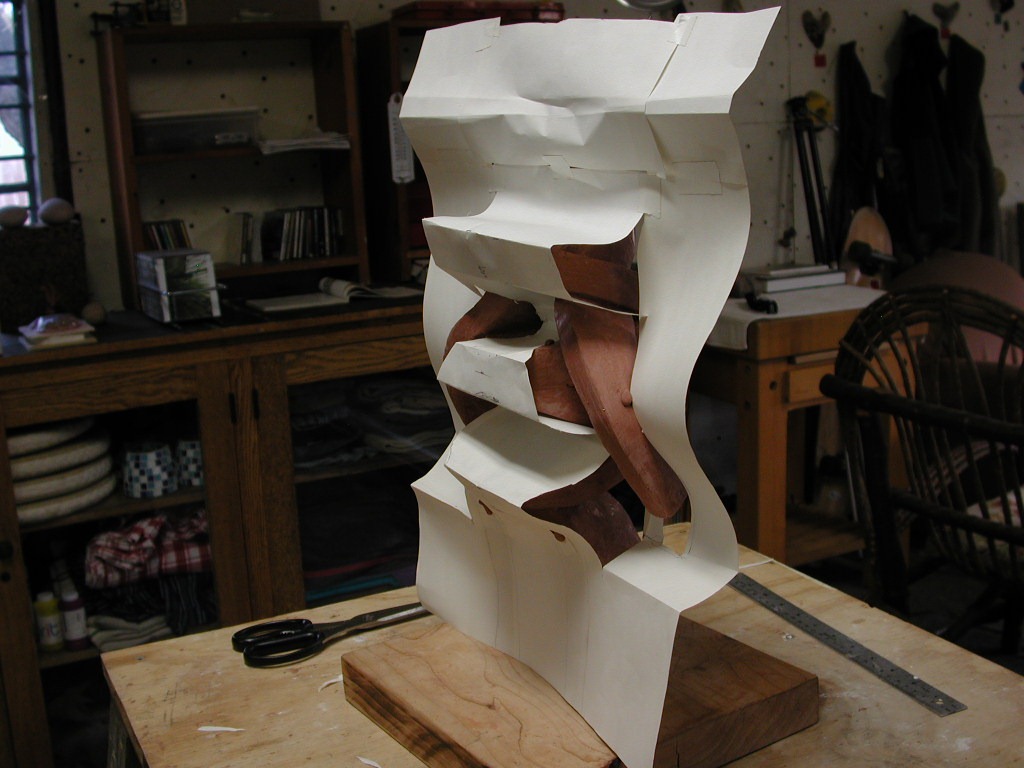

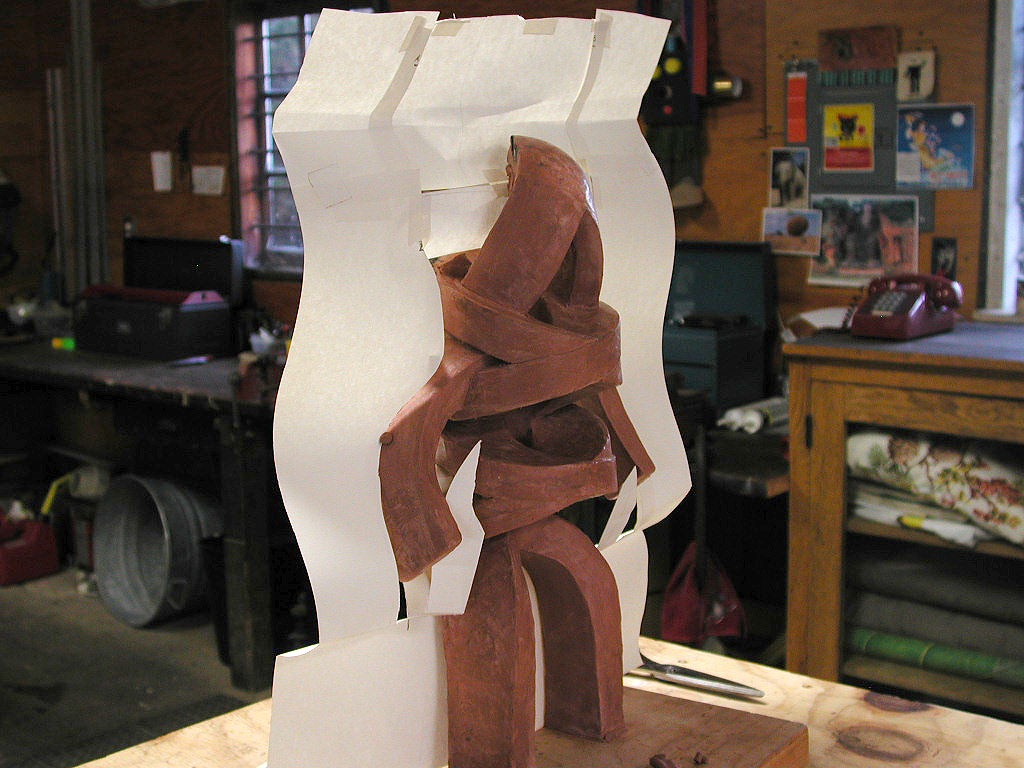

I begin wanting a surface which will support the weight of the model evenly and steady. I cut and trim and fit a sheet of paper which is creased and folded to fit the complex shape of the piece.

a_cyclcradleb_cyclcradle

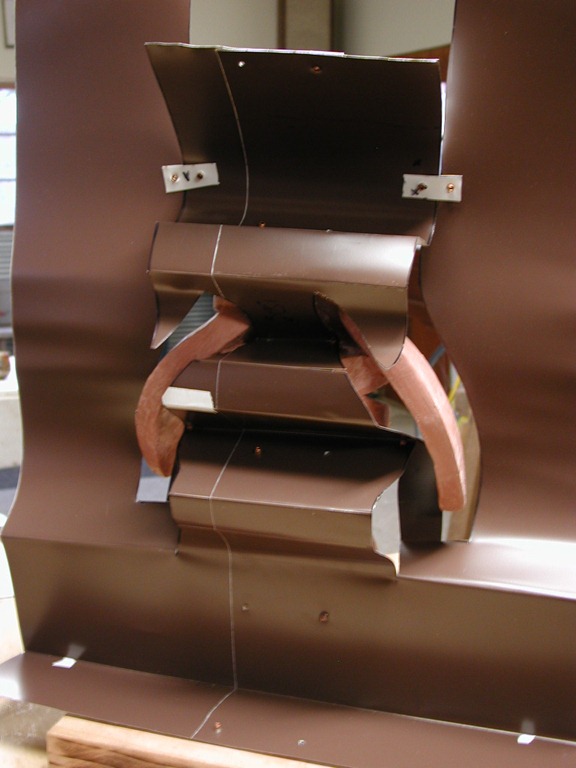

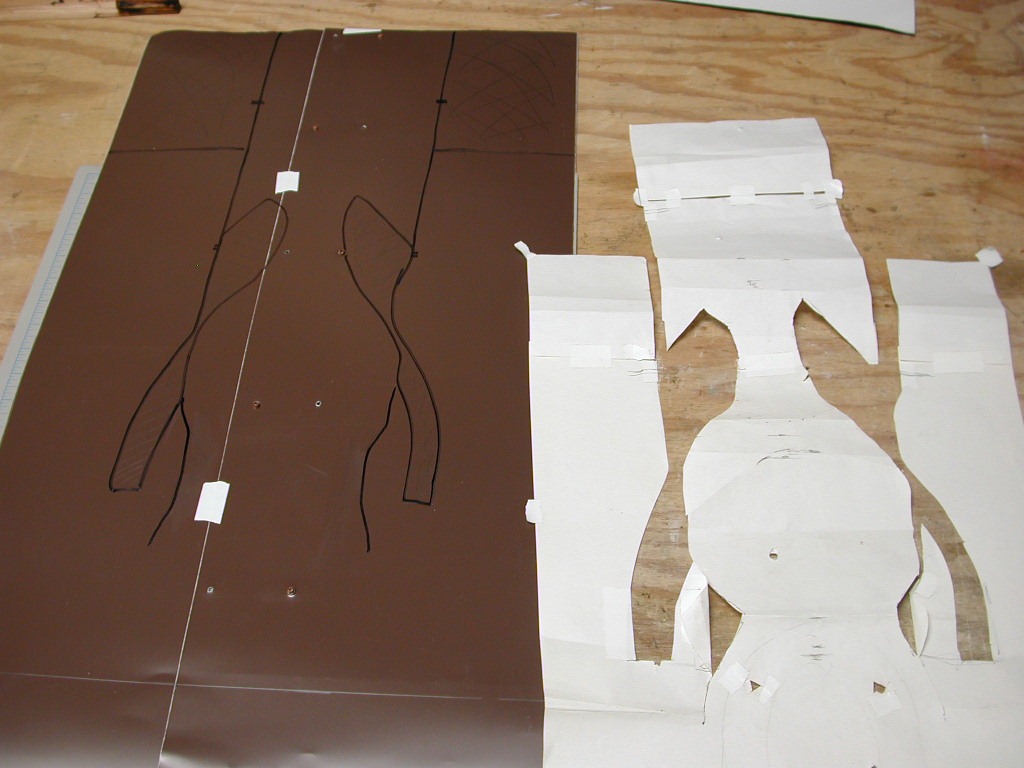

I flatten and apply this template to a sheet of aluminum, the kind used for roof flashing. It is firm, but folds easily. I recreate the paper shape and fit it to the model.

d_cyclcradle

c_cyclcradle

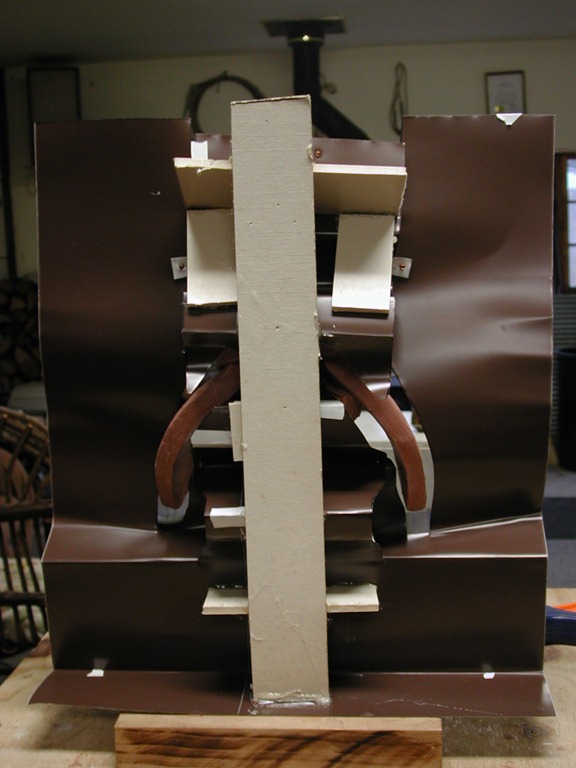

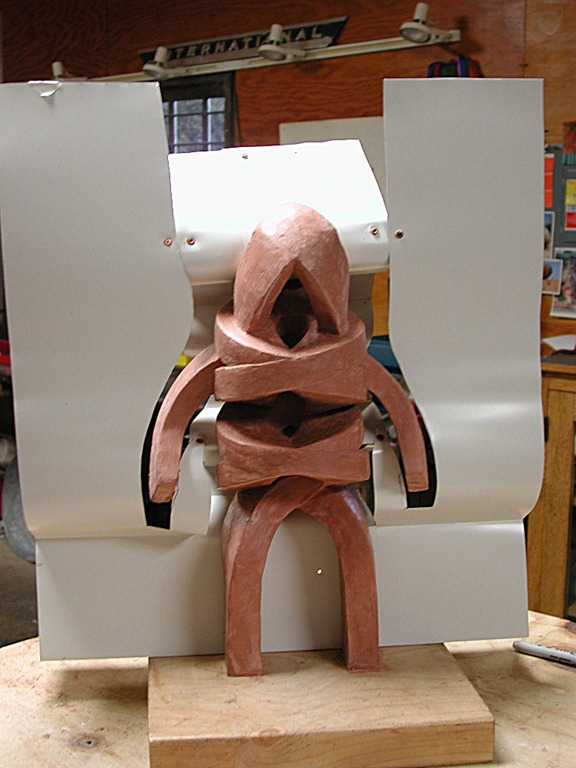

After some adjustments, I hot-glue some foam-core supports to stiffen and secure the shape I want. Foam-core is strong, easy to cut to any shape, and glue. I also get large sheets of it for free out of the dumpster behind the local university school of art at the end of the Spring term.

f_cyclcradle

e_cyclcradle

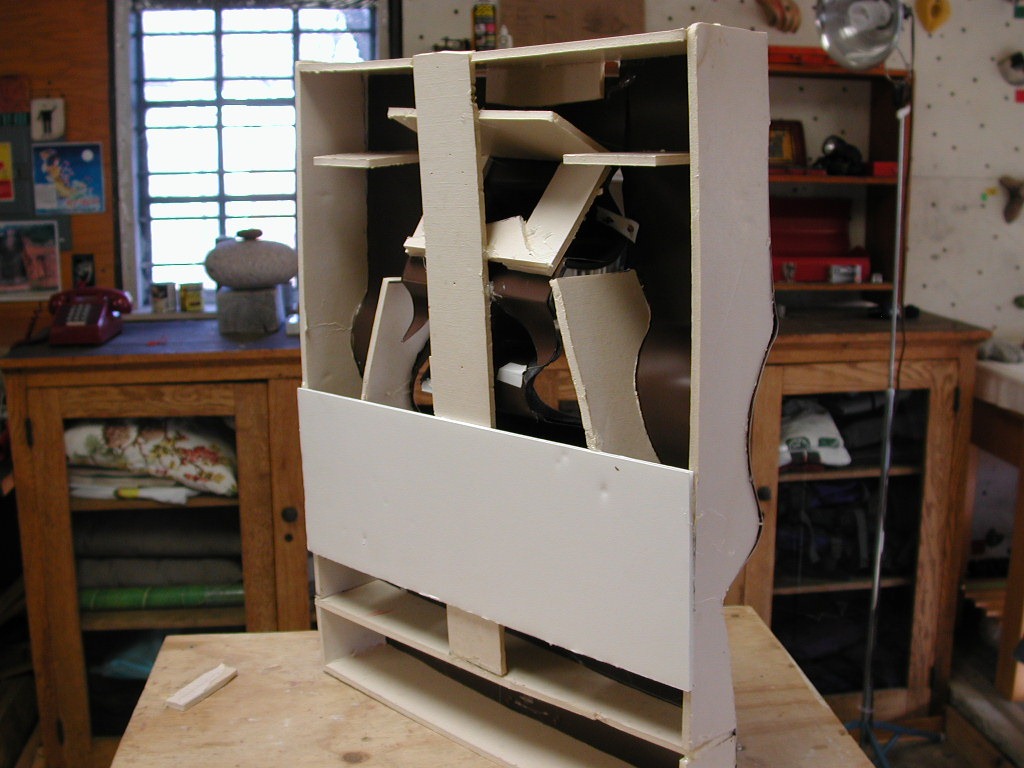

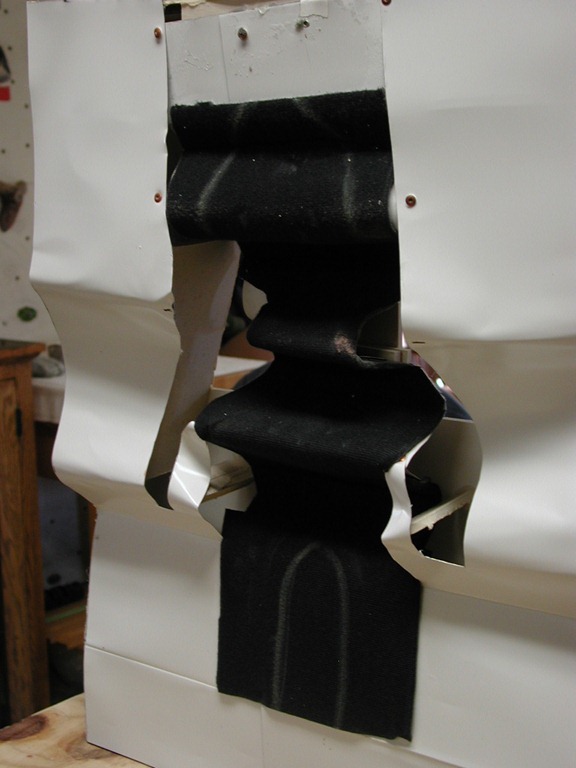

Is it right? Fill it up with foam until it is as strong as you need it. Sides, edges, everywhere. Think: it will eventually need to support the full weight of a plaster mother-mold half which will be poured on top of it. And then add a little thin soft foam, automotive headliner is good for this, to cushion the model in a bed. You don’t want the model to deform under it’s own weight, during all the more work that’s to follow.

h_cyclcradle

g_cyclcradle

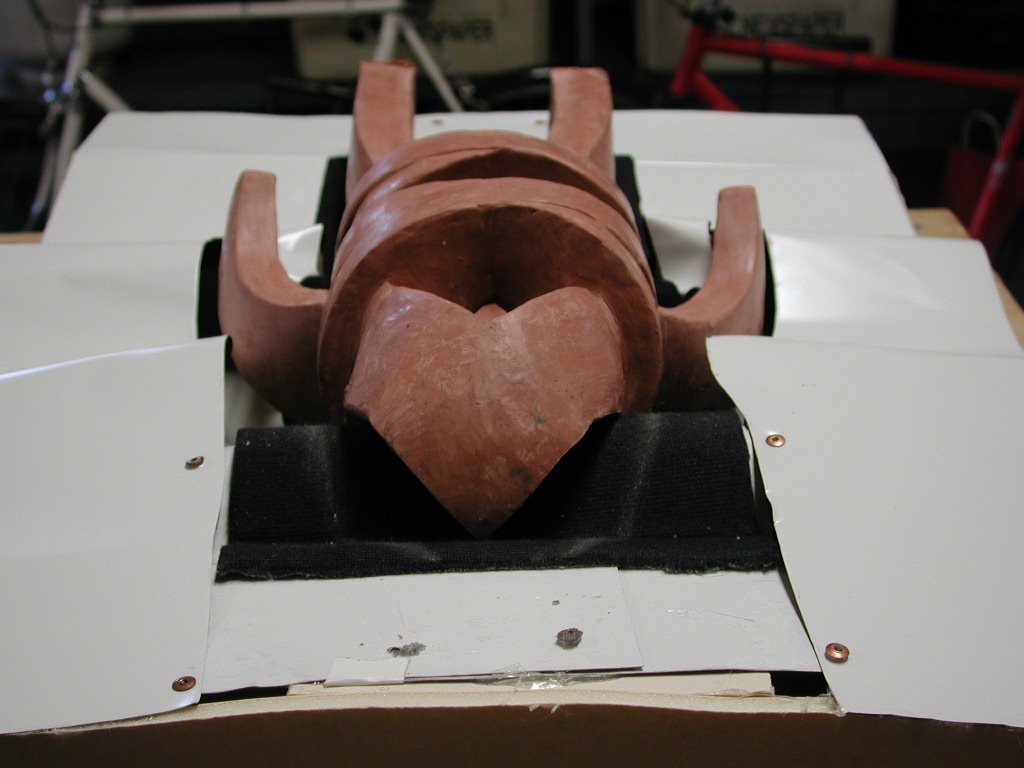

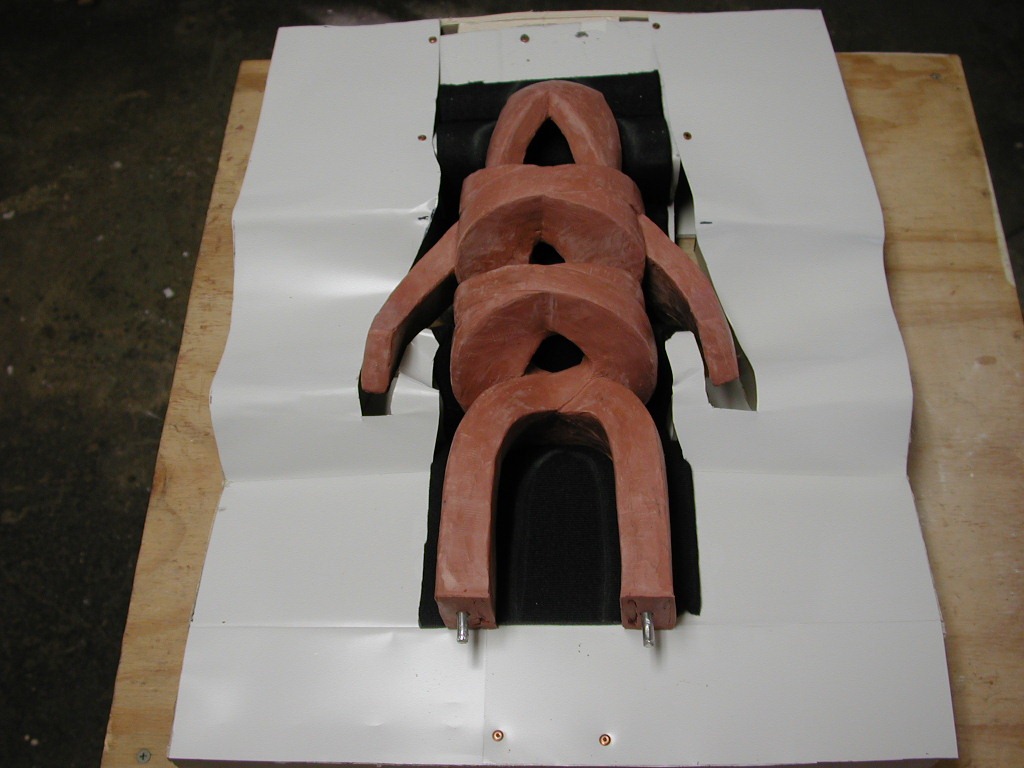

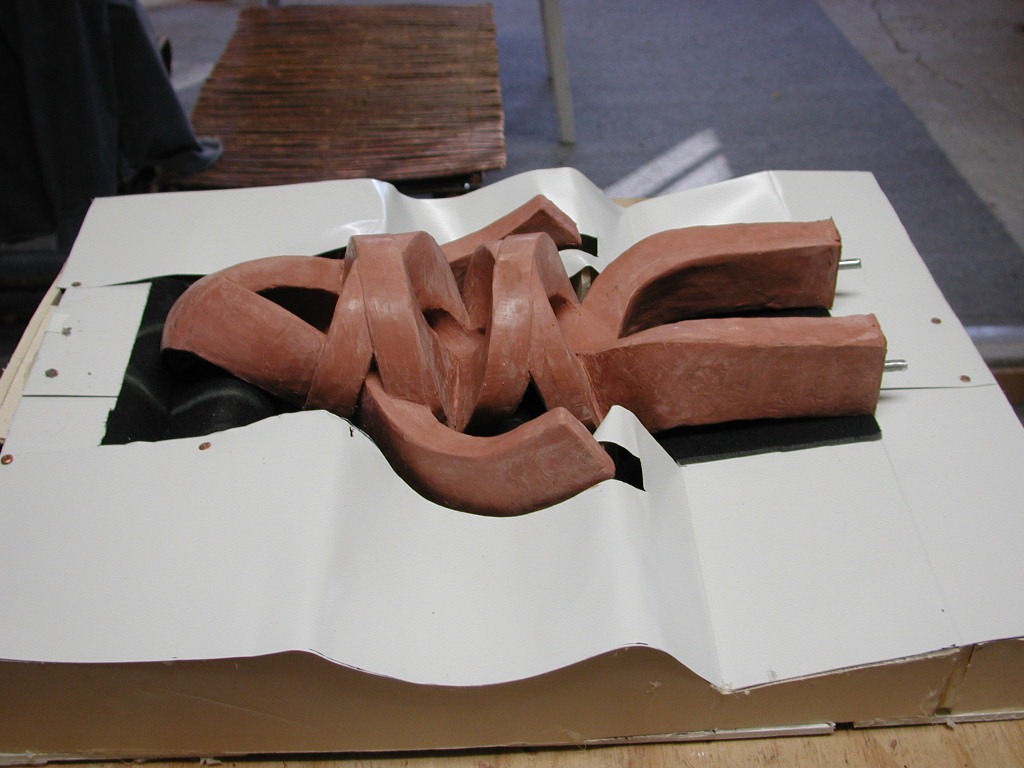

That’s how you go through all the trouble to make a cradle that fits, and evenly supports the model in a position you can work on it easily and accurately. Trust me, it will be worth it.

i_cyclcradle

j_cyclcradle

k_cyclcradle
